12GF Series
Geared DC Motor
Gear Reduction Ratio | Series 1 | 12 | 30 | 75 | 187.5 | 468.75 | 1171.875 |
Series 2 | 9.6 | 24 | 60 | 150 | 375 | 937.5 | |
Series 3 | 40 | 120 | 300 | 750 | |||
Gearbox Length (L) | 11.2 | 12.6 | 14 | 16.3 | 17.7 | ||
(Other reduction ratios are welcome) | |||||||

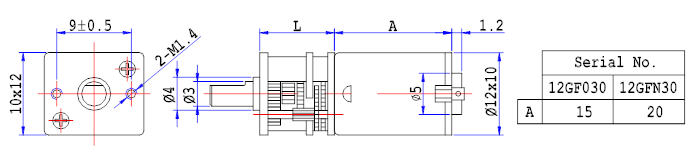

This is a series of motors based on the flat, open-frame gearbox of ?12x10mm. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those that the diameter is approx. or a little less than ?12mm. Gearbox spindle outputs from the centre of the gearbox.
Electronic door lock, monitor, optic equipment, printer, medical equipments,
Serial No. | Model | Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||
Speed | Current | Speed | Torque | Current | Output | Torque | Current | |||
V | rpm | mA | rpm | gcm | mA | mW | Kgcm | mA | ||
12GF030 | 08260-287 | 4.5 | 40 | 30 | 32 | 500 | 150 | 160 | 2.1 | 600 |
09175-287 | 2.4 | 27 | 35 | 18 | 600 | 150 | 110 | 1.5 | 350 | |
4.5 | 52 | 45 | 30 | 1500 | 350 | 460 | 3 | 700 | ||
13115-287 | 2.4 | 55 | 30 | 40 | 700 | 350 | 280 | 3 | 500 | |
6 | 70 | 70 | 52 | 1200 | 250 | 640 | 4 | 700 | ||
