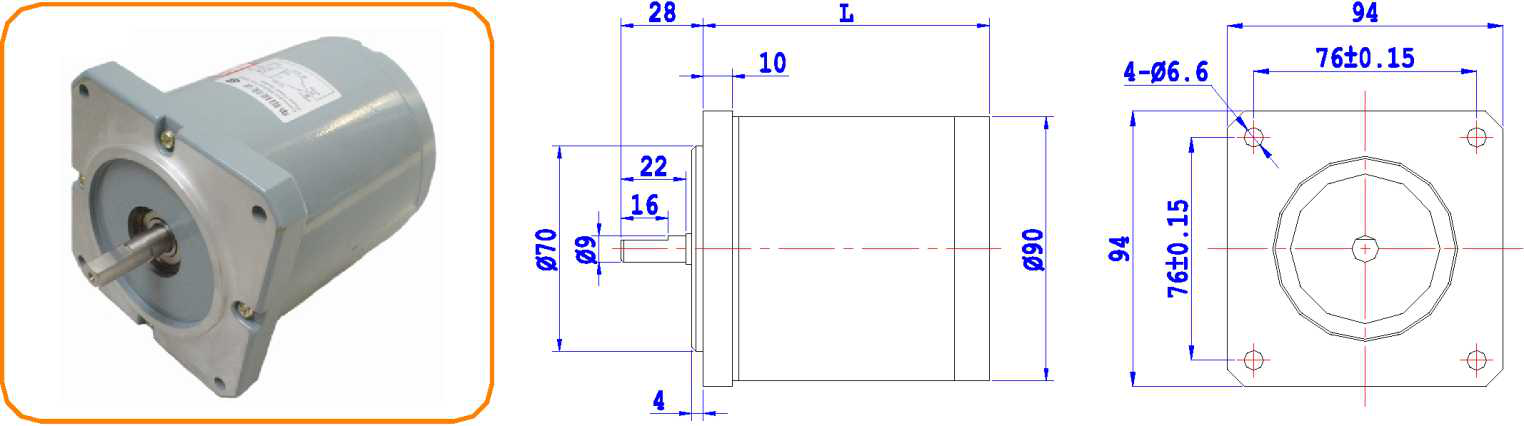

NSR90 Series
Synchronous Motor
Mainly used for Automatic Curtains f Stage Lightsz Electric Advertisementz Electric
Appliances f Pumpsf Scientific & Teaching Devices, etc which needs high torque but low speed.
Model | Ph, | Rated Volt. | Rated F「eq'y | Output Speed | Input Current | Input Power | Max. Torque | Rated Torque | Start Torque | Capacitor | Motor Length | G,W, |
(VAC) | (Hz) | (rpm) | (A) | (W) | (Nm) | (Nm) | (Nm) | (jUF/V) | (mm) | (Kgs) | ||
NSR90-060-6L | 1 | 220 | 50 | 60 | 0.20 | 40 | 2.00 | 1.90 | 0.95 | 2.7/400 | 85 | 2.4 |
NSR90-060-6 | 1 | 220 | 50 | 60 | 0,35 | 70 | 2.80 | 2.60 | 1.35 | 4.0/400 | 100 | 3.2 |
NSR90-060 | 1 | 220 | 50 | 60 | 0,35 | 70 | 3.00 | 2,80 | 1.40 | 2.7/400 | 100 | 3.2 |
NSR90-060-2 | 3 | 220 | 50 | 60 | 0,30 | 60 | 3.80 | 3,55 | 1.80 | 100 | 3.2 | |
NSR90-060-3 | 3 | 380 | 50 | 60 | 0.18 | 60 | 3.80 | 3,55 | 1.80 | 100 | 3.2 | |
NSR90-060-H | 1 | 220 | 50 | 60 | 0.50 | 90 | 3,50 | 3,30 | 1.65 | 3.0/400 | 120 | 4.0 |
NSR90-115-L | 1 | 220 | 50 | 115 | 0.20 | 40 | 1.60 | 1.45 | 0,80 | 2.7/400 | 85 | 2.4 |
NSR90-115-6 | 1 | 220 | 50 | 115 | 0,35 | 70 | 2.20 | 2.00 | 1.05 | 4.0/400 | 100 | 3.2 |
NSR90-115 | 1 | 220 | 50 | 115 | 0.40 | 80 | 2,55 | 2.30 | 1.05 | 2.7/400 | 100 | 3.2 |
NSR90-115-2 | 3 | 220 | 50 | 115 | 0.40 | 80 | 3,30 | 3.00 | 1.60 | 100 | 3.2 | |
NSR90-115-3 | 3 | 380 | 50 | 115 | 0.22 | 80 | 3,30 | 3.00 | 1.60 | 100 | 3.2 | |
NSR90-115-H | 1 | 220 | 50 | 115 | 0.50 | 90 | 3.10 | 2,80 | 1.50 | 4.0/400 | 120 | 4.0 |
NSR90-136 | 1 | 220 | 50 | 136 | 0.40 | 80 | 2.40 | 2.20 | 1.10 | 2.7/400 | 100 | 3.2 |
NSR90-136-2 | 3 | 220 | 50 | 136 | 0.40 | 80 | 3.00 | 2.70 | 1.50 | 100 | 3.2 | |
NSR90-136-3 | 3 | 380 | 50 | 136 | 0.23 | 80 | 3.00 | 2.70 | 1.50 | 100 | 3.2 |
