16GA Series
Geared DC Motor
Gear Reduction Ratio | Series1 | 50 | 150 | 450 | 1350 | 4050 |
Series2 | 30 | 100 | 300 | 900 | 2700 | |
Series3 | 25 | 75 | 250 | 750 | 2250 | |
Series4 | 10, 15 | 20 | - | - | - | |
Gearbox Length (L) | 12.8 | 14.2 | 15.6 | 17.9 | 19.3 | |

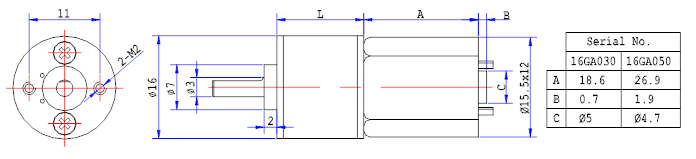

This is a series of motors based on the round, complete sealed gearbox diameter of ?16mm. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those that the diameter is approx. ?16mm. Gearbox spindle outputs from the centre of the gearbox.
Monitor, Precision instrument, Mini mechanism, etc.
Serial No. | Model | Rated Voltage | No Load | At Maximum Efficiency | Stall | |||||
Speed | Current | Speed | Torque | Current | Output | Torque | Current | |||
V | rpm | mA | rpm | gcm | mA | mW | Kgcm | mA | ||
16GA030 | 10180-100 | 3 | 70 | 60 | 52 | 300 | 170 | 160 | 0.8 | 400 |
6 | 140 | 90 | 100 | 600 | 300 | 600 | 1.6 | 800 | ||
10180-200 | 6 | 58 | 80 | 46 | 1200 | 290 | 570 | 4 | 800 | |
10180-250 | 6 | 28 | 70 | 20 | 800 | 170 | 160 | 2.4 | 800 | |
08250-100 | 3 | 60 | 50 | 44 | 200 | 120 | 90 | 0.8 | 500 | |
16GA050 | 09240-30 | 12 | 400 | 50 | 330 | 200 | 170 | 680 | 1 | 600 |
09240-50 | 12 | 235 | 50 | 185 | 400 | 170 | 750 | 1.6 | 600 | |
07350-200 | 12 | 42 | 40 | 30 | 1600 | 120 | 490 | 4 | 400 | |
07350-250 | 12 | 32 | 40 | 23 | 1700 | 110 | 420 | 4 | 400 | |
12125-100 | 6 | 115 | 80 | 92 | 700 | 270 | 600 | 2.8 | 1000 | |
12125-150 | 6 | 78 | 80 | 65 | 800 | 240 | 530 | 3.5 | 1000 | |
12125-200 | 6 | 58 | 80 | 46 | 1200 | 290 | 570 | 4.5 | 1000 | |
14100-200 | 2.4 | 29 | 80 | 13 | ﹡2000 | 440 | 270 | 2.7 | 800 | |
14100-250 | 2.4 | 24 | 80 | 11 | ﹡2500 | 440 | 280 | 3.8 | 800 | |
