20GA-1 Series
Geared DC Motor
Gear Reduction Ratio | Series 1 | 46.9 | 103.1 | 226.8 | 498.9 |
Series 2 | 35.5 | 78.1 | 171.8 | 377.9 | |
Series 3 | 26.9 | 59.2 | 130.1 | 286.3 | |

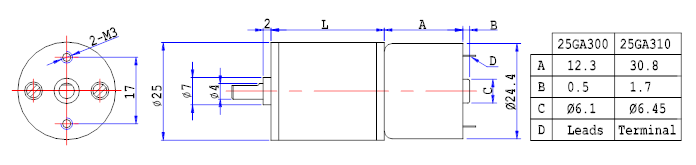

Gearbox Length (L) | 21.0 | 23.0 | 25.0 | 27.0 | |
This is a series of motors based on the round, complete sealed gearbox diameter of ?25m. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those that the diameter is approx. ?25mm. Gearbox spindle outputs from the centre of the gearbox.
Safe box, storage box, robot, measuring instrument, intelligent water meter, advertising equipment, automatic window curtain, audio equipment, medical instrument, healthful equipment, perfume sprayer, electronic game machine, etc.
Serial No. | Model | Rated Voltage | No Load | At Maximum Efficiency | Stall | |||||
Speed | Current | Speed | Torque | Current | Output | Torque | Current | |||
V | rpm | mA | rpm | Kgcm | mA | W | Kgcm | mA | ||
25GA-300 | 11400-103 | 6 | 65 | 60 | 47 | 0.6 | 180 | 0.29 | 2.00 | 0.50 |
11400-226 | 3 | 14 | 40 | 8 | 1.0 | 130 | 0.08 | 1.80 | 0.30 | |
6 | 28 | 60 | 18 | 2.0 | 250 | 0.37 | 4.00 | 0.50 | ||
11400-500 | 6 | 13 | 60 | 10 | 2.0 | 120 | 0.21 | 8.50 | 0.50 | |
25GA-310 | 11400-21.3 | 3 | 150 | 30 | 105 | 0.7 | 100 | 0.11 | 0.25 | 0.30 |
6 | 295 | 50 | 230 | 0.2 | 160 | 0.47 | 0.80 | 0.60 | ||
12360-35.5 | 3 | 100 | 50 | 72 | 0.2 | 160 | 0.15 | 0.50 | 0.50 | |
11400-103 | 6 | 60 | 50 | 48 | 0.8 | 160 | 0.39 | 3.00 | 0.60 | |
11400-171 | 3 | 18.5 | 30 | 13.5 | 0.5 | 100 | 0.07 | 1.80 | 0.30 | |
09520-500 | 6 | 6 | 40 | 4 | 2.0 | 80 | 0.08 | 5.00 | 0.25 | |
11400-500 | 6 | 13 | 60 | 10 | 3.0 | 170 | 0.30 | 10.0 | 0.30 | |
