37GB Series
Geared DC Motor
Gear Reduction Ratio | Series 1 | 30 | 90 | 270 | 490 |
Series 2 | - | 70 | 210 | 450 | |
Series 3 | - | 50 | 150 | 350 | |

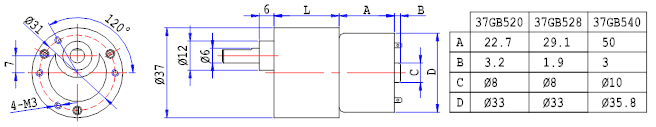

Gearbox Length (L) | 21.5 | 24 | 26.5 | 29 | |
Bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, advertising equipment, medical instrument, analysis instrument, electronic game machine, etc..
Serial No. | Model | Rated Voltage | No Load | At Maximum Efficiency | Stall | |||||
Speed | Current | Speed | Torque | Current | Output | Torque | Current | |||
V | rpm | mA | rpm | Kgcm | A | W | Kgcm | A | ||
37GB520 | 13490-50 | 24 | 180 | 50 | 145 | 2 | 0.22 | 3.0 | 10 | 1.0 |
11750-490 | 24 | 12 | 45 | 11 | ﹡10.0 | 0.10 | 1.2 | 40 | 0.7 | |
11750-270 | 12 | 11 | 25 | 9 | 6.0 | 0.10 | 0.5 | 30 | 0.4 | |
13490-70 | 12 | 60 | 50 | 48 | 2.0 | 0.15 | 1.0 | 10 | 0.6 | |
17320-70 | 12 | 96 | 100 | 80 | 2.0 | 0.32 | 1.6 | 12 | 2.0 | |
20260-30 | 12 | 280 | 100 | 230 | 1.5 | 0.60 | 3.5 | 8 | 2.6 | |
25150-50 | 6 | 152 | 170 | 125 | 1.5 | 0.85 | 1.9 | 8 | 3.5 | |
17410-90 | 12 | 60 | 50 | 48 | 4.0 | 0.32 | 2.0 | 18 | 1.5 | |
11750-50 | 24 | 125 | 45 | 100 | 2.0 | 0.15 | 2.1 | 10 | 0.64 | |
37GB528 | 13450-10 | 24 | 780 | 50 | 660 | 0.5 | 0.25 | 3.5 | 3 | 0.6 |
15330-270 | 24 | 20 | 50 | 18 | 8.0 | 0.15 | 1.5 | 60 | 0.8 | |
11660-270 | 24 | 11 | 40 | 10 | 5.0 | 0.08 | 0.5 | 40 | 0.5 | |
15400-150 | 24 | 32 | 50 | 25 | 9.0 | 0.19 | 2.3 | 28 | 0.7 | |
15400-30 | 24 | 165 | 50 | 145 | 1.0 | 0.11 | 1.5 | 9 | 0.7 | |
17290-30 | 12 | 195 | 80 | 150 | 2.0 | 0.40 | 3.1 | 8 | 1.5 | |
17290-90 | 12 | 65 | 70 | 52 | 4.0 | 0.40 | 3.1 | 22 | 1.5 | |
17290-150 | 12 | 40 | 70 | 30 | 9.0 | 0.40 | 2.7 | 25 | 1.5 | |
18250-70 | 12 | 100 | 90 | 82 | 3.0 | 0.40 | 2.5 | 18 | 1.9 | |
37GB540 | 21098-210 | 12 | 17 | 130 | 13.5 | *20 | 0.45 | 2.4 | 70 | 4.0 |
21098-50 | 24 | 140 | 150 | 130 | 5.0 | 0.52 | 6.0 | 16 | 4.0 | |
14198-30 | 24 | 110 | 100 | 85 | 4.5 | 0.15 | 4.2 | 16 | 1.2 | |
14198-450 | 24 | 7.5 | 100 | 7 | 10.0 | 0.15 | 0.7 | 70 | 1.2 | |
27068-70 | 12 | 70 | 200 | 57 | 5.0 | 0.50 | 3.0 | 50 | 4.2 | |
19138-30 | 24 | 165 | 120 | 115 | 3.5 | 0.78 | 4.1 | 25 | 3.1 | |
