42GF Series
Geared DC Motor
BriefIntroduction:

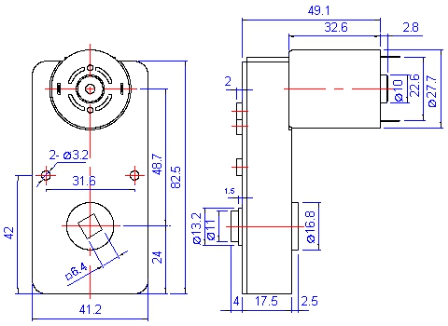

This is a series of motors based on the rectangle shape, complete sealed gearbox with mounting holes distance to be 31.6mm. Gearbox thickness is fixed. Motor can be any type but most popular motors are those that the diameter is approx. ?28mm. Gearbox spindle has a key-way for fixing a rotating subject.
Main aplication :
Automatic window curtain, Sunshade, etc.
|
|
Gear reduction ratio can be 1：252.
Specifications Of Some TypicalModels:
Serial No. | MODEL | Rated Voltage | No Load | At Rated Torque | Max. Torque Permitted | ||||
Speed | Current | Speed | Torque | Current | Output | ||||
V | rpm | mA | rpm | gcm | mA | mW | Kgcm | ||
42GF360 | 14295-252 | 12 | 23 | 140 | 21 | *5.0 | 250 | 1.0 | 30 |
2650-252 | 12 | 52 | 310 | 46 | *18.0 | 1300 | 8.5 | ||
