48GE Series
Geared DC Motor

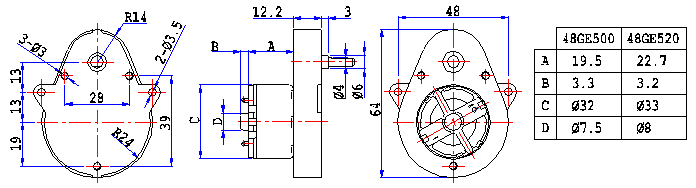

This is a series of motors based on the pear shape, complete sealed gearbox with mounting holes distance to be 48mm. Gearbox thickness is fixed. Motor can be any type but most popular motors are those that the diameter is approx. ?33mm. Gearbox spindle can extended from both sides of the gearbox. It is a flat object rather than a long cylinder object so it is good for those that need flat motors
Safe box, storage box, instrument, accessory of automobile, vending machine, etc.
Serial No. | Model | Rated Voltage | No Load | At Maximum Efficiency | Stall | |||||
Speed | Current | Speed | Torque | Current | Output | Torque | Current | |||
V | rpm | mA | rpm | Kgcm | mA | mW | Kgcm | mA | ||
48GE500 | 12560-450 | 6 | 6 | 60 | 4.5 | 6 | 120 | 0.28 | 30 | 350 |
14415-225 | 6 | 16 | 60 | 12.5 | 4 | 180 | 0.52 | 12 | 600 | |
14415-105 | 6 | 35 | 40 | 26 | 2 | 180 | 0.53 | 7 | 600 | |
48GE520 | 11750-90 | 24 | 60 | 60 | 45 | 6 | 400 | 2.8 | 15 | 1.2 |
11750-450 | 24 | 13 | 60 | 10 | 15 | 400 | 1.5 | 25 | 1.2 | |
16290-225 | 12 | 47 | 120 | 38 | 7 | 600 | 2.7 | 45 | 2.5 | |
14415-90 | 6 | 35 | 40 | 26 | 2 | 180 | 0.53 | 7 | 0.6 | |
