NSR-60 Series
Synchronous Motor
Main Application:
Mainly used for Automatic Curtains, Stage Lights, Electric Advertisement, Electric Appliances, Pu
Scientific Teaching Devices, etc which needs high torque but low speed.
Information download:
Nostop AC Synchronous Motor catalog (NSR-60).pdfMain Features:

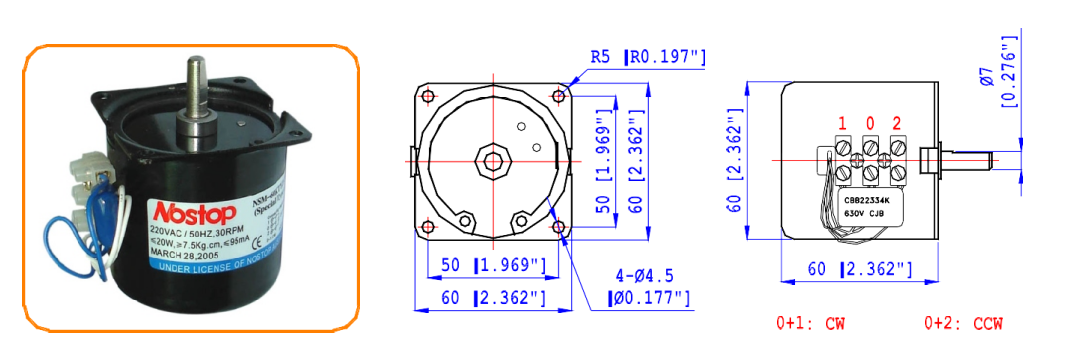

1)Shaft diameter is: 97 Omm. Shaft length and shape can be any as customers' needs.
2)Reversible. Motor rotation direction can be CW or CCw controlled by capacitors.
3)Low lifetime (more than 8000 hours), low noise less than 42dB(A)l, stable running.
4)High torque available. If customer doesnt need high torque, we can use permanent magnet which is cheaper. But if customer needs high torque, we can use either plastic magnet (with 30% more torque)or even Nd-Fe-B (w
with 908 more torque Please see the details as following chart.
5)E. UL, TUV approved.
Characteristics (test under room temperature):
| Rated Voltage | (VAC) | 12-240 (can be any as needed) | |||||||||||||||
| Rated Frequency | (Hz) | 50 or 60 or 50/60 | |||||||||||||||
| Input power | (W) | <=20 | |||||||||||||||
| Input Courrent | (mA) | <=55 | |||||||||||||||
| Starting Voltage | (VAC) | <=85% of rated voltage | |||||||||||||||
| Insulation Class | E (or any as needed) | ||||||||||||||||
| Rated Speed | @ 50Hz @60Hz | (rpm) | 2.5 | 3.8 | 5 | 7.5 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 110 |
| (rpm) | 3 | 4.5 | 6 | 9 | 12 | 14.4 | 18 | 24 | 30 | 36 | 48 | 60 | 72 | 96 | 132 | ||
| Rated Torque @ 50Hz | Permanent | (Nm) | 4.41 | 3.14 | 2.55 | 1.96 | 1.47 | 1.32 | 0.98 | 0.74 | 0.64 | 0.49 | 0.39 | 0.29 | 0.25 | 0.2 | 0.14 |
| (Kgf.cm) | 45 | 32 | 26 | 20 | 15 | 13.5 | 10 | 7.5 | 6.5 | 5 | 4 | 3 | 2.5 | 2 | 1.4 | ||
| Plastic Magnet | (Nm) | 5.88 | 4.9 | 3.92 | 2.45 | 1.96 | 1.77 | 1.37 | 0.98 | 0.83 | 0.74 | 0.59 | 0.39 | 0.34 | 0.25 | 0.2 | |
| (Kgf.cm) | 60 | 50 | 40 | 25 | 20 | 18 | 14 | 10 | 8.5 | 7.5 | 6 | 4 | 3.5 | 2.5 | 2 | ||
| Nd-Fe-B Magnet | (Nm) | 7.85 | 5.98 | 4.9 | 3.92 | 2.94 | 2.55 | 2.06 | 1.47 | 1.18 | 0.98 | 0.78 | 0.59 | 0.49 | 0.34 | 0.29 | |
| (Kgf.cm) | 80 | 60 | 50 | 40 | 30 | 26 | 21 | 15 | 12 | 10 | 8 | 6 | 5 | 3.5 | 3 | ||
